Ordering code |
Appropiate serie |
Appropiates screws for fixing |
90.1002 |
10, 20, 11A, CM10, CS11A, CS10 |
3 M3 x 6 |
DIN84, DIN85, DIN7985, DIN7984 |
90.1003 |
10, 20, CM10, CS10 |
3 M3 x 8 |
DIN84, DIN85, DIN7985, DIN7984 |
90.1004 |
10, 20, CM10, CS10 |
3 M3 x 6 |
DIN84, DIN85, DIN7985, DIN7984 |
90.1005 |
10, 20, 11A, CM10, CS11A, CS10 |
3 M3 x 10 |
DIN963, DIN965 |
90.1006 |
10, 20, CM10, CS10 |
3 M3 x 10 |
DIN912 |
90.1008 |
30, CS30 |
3 M3 x 10 |
DIN7991 |
|

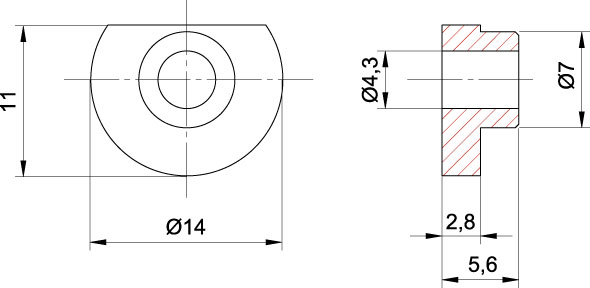

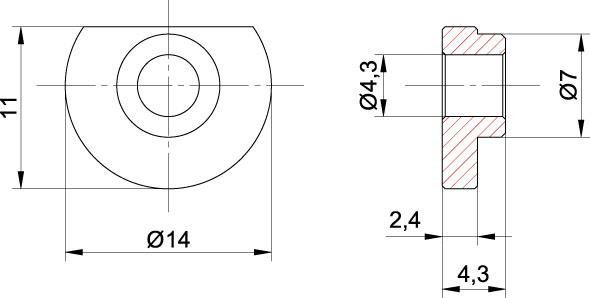

 Syncro-flange type flange
In aluminium alloy and anodised (we recommend 3 flanges for each encoder). Makes it possible to place the encoder in any angular position.
Ordering code |
Appropiate serie |
Screws for fixing |
90.1103 |
58, CM30, (1) |
M4 x 12 |
DIN84, DIN912 |
90.1104 |
20, (2) |
M4 x 12 |
DIN84, DIN912 |
90.1105 |
58, 20, (2) |
M4 x 12 |
DIN84, DIN912 |
(1) Also apropiated for the series 10 and CS10 with the flange 90.1003.
(2) Also apropiated for the series 10 and CS10 with the flange 90.1004. |
|
 |
